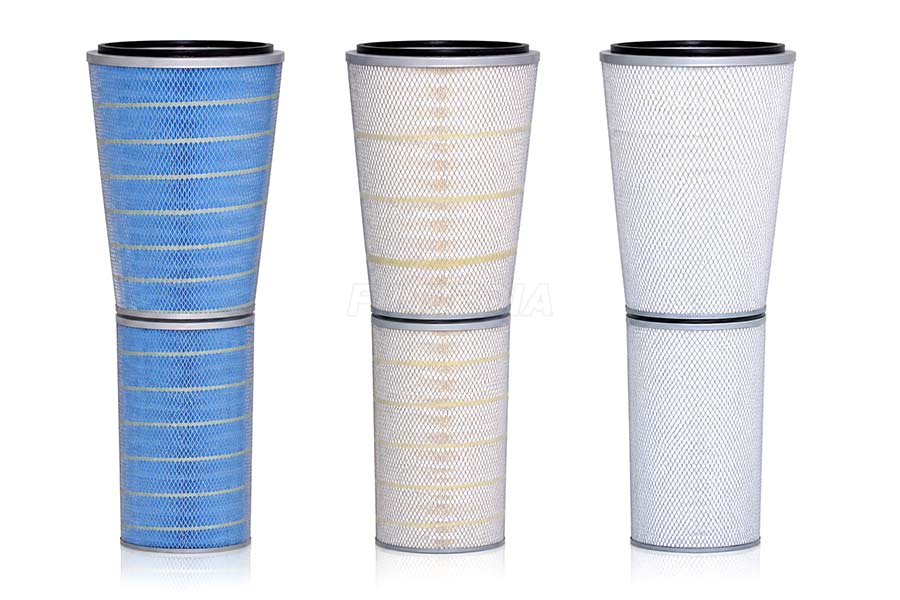

Wood Pulp Cellulose Air Filter Cartridge

Our Wood pulp cellulose air filter cartridge used  cellulose fiber or synthetic fiber for base media which is excellent in filter efficiency. It is suitable for the filtration of fine dust type in gas turbines, compressors, shot blast, tobacoo, pulverized and floating dust collection.



Category:
Share:

Properties and Features

Suitable for the filtration of fine dust type in gas turbines, compressors, shot blast, tobacoo, pulverized and floating dust collection. .Imported cellulose fiber or synthetic fiber for base media. excellent filter efficiency. Wide plate spacing, great filter surface. Electrichemical plate top and bottom, no rust. Perforated zinc galvanized metal inner core, allows good airflow. Specialty chlorine rubber gasket to ensure airtight sealing. Applicable temperature: ≤ 80℃

Application scope

1.Blast-furnace air of steel companies
2.Filtering the intake air of the air separation plant at the oxygen production factory
3.Filtering the fresh air of gas turbine
4.Filtering the fresh air of air conditioners
5.Chemical engineering ,pharmacy and food etc, which have strict requirement for air quality.

Specification

Types External diameter Inner diameter Length Surface filtration
Type 1 φ324mm φ213mm 660mm 21m²
Type 2 φ352mm φ241mm 660mm 23m²
Type 3 φ324mm φ213mm 750mm 26m²
Type 4 φ324mm φ213mm 880mm 27m²
Type 5 φ324mm φ213mm 1000mm 28m²
