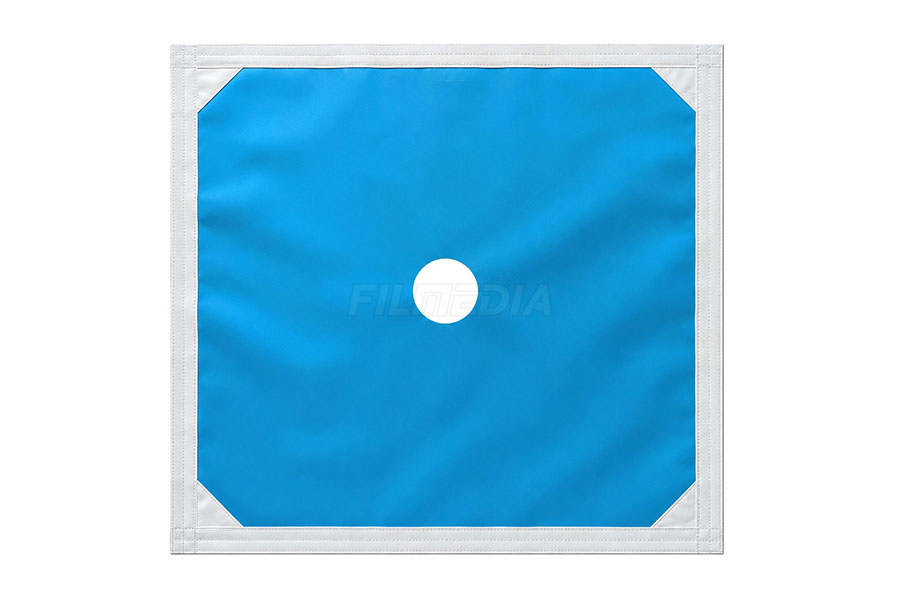

Woven Nylon (PA) Filter Cloth for Solid-liquid Separation

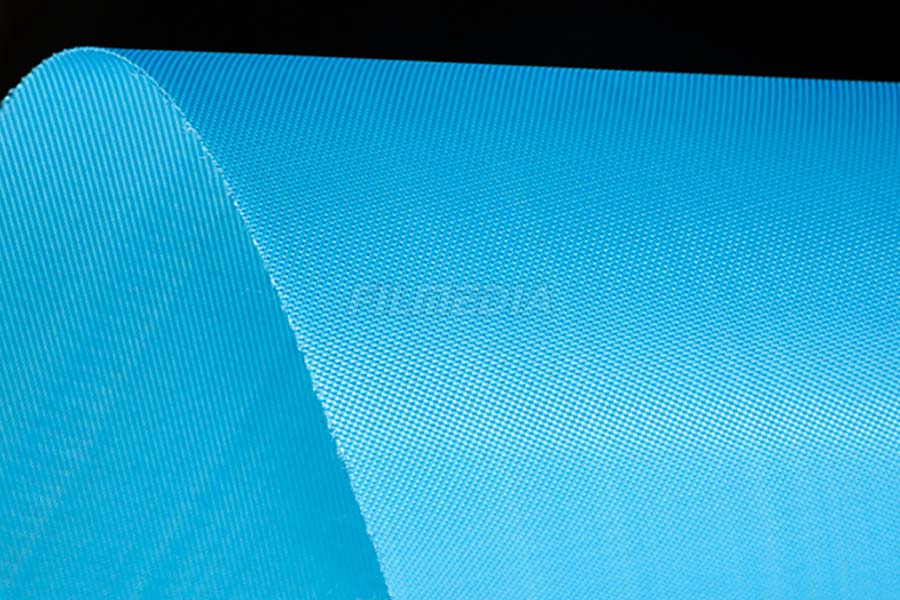

Nylon, also known as polyamide (PA), is a class of polymer materials linked by amide bonds. Depending on their molecular structure, common varieties include PA6, PA66, PA610, and PA612. Nylon woven filter cloth is a high-performance filtration material widely used in solid-liquid separation. Woven from high-strength nylon monofilaments or multifilaments, it offers excellent filtration efficiency, abrasion resistance, and chemical corrosion resistance, meeting the demands of diverse industrial filtration applications.
Description
☑ Exceptional Acid & Alkali Resistance
Demonstrates outstanding chemical stability, enabling long-term, reliable performance in challenging acidic or alkaline environments.
☑ High-Efficiency Filtration
Engineered with uniform pore structures to precisely retain fine impurities and solid particles, ensuring clear filtrate quality.
☑ Low Resistance & High Flux
The ultra-thin profile significantly minimizes filtration resistance, delivering higher flow rates and lower energy consumption under identical pressure.
☑ High Mechanical Strength & Wear Resistance
Boasts exceptional tensile strength and unmatched abrasion resistance, making it ideal for high-frequency, high-intensity mechanical filtration.
☑ Smooth Surface for Easy Cake Discharge
The flat woven surface ensures smooth filter cake release, while facilitating effortless backwashing and cloth regeneration to extend service life.
01. Monofilament Polyamide (PA) Filter Cloth
- Great permeability of air and water.
- Less jam possibility.
- Filter cake can be easily released and recycled.
Specifications
| MODEL .NO | WEIGHT (g/m2) | SPLITTING STRENGTH (N/5╳20cm) | SPLITTING AND ELONGATION(%) | AIR PERMEABILITY (mm/s) | THICKNESS (mm) | ||
| WARP | WEFT | WARP | WEFT | ||||
| PA5815 | 540 | 5340 | 2258 | 28.7 | 24.6 | 818 | 0.85 |
| PA5133 | 590 | 7304 | 2550 | 37.8 | 26.5 | 619.4 | 1.00 |
| PA2213 | 280 | 3111 | 1825 | 25.8 | 24.2 | 2268.36 | 0.52 |
| PA2812 Dright | 360 | 3585 | 2165 | 33.5 | 25.8 | 2239.12 | 0.65 |
| PA2812 | 350 | 3780 | 2456 | ||||
02. Multifilament Polyamide (PA) Filter Cloth
- Great strength,especially its anti-abrasion is top-ranked in all general fibers.
- Resist strong alkali and weak acid.
- The strength expense can be ignored after dealt with NaoH(10%),as Polyamide is used 16h in the state of 90℃.
- It’s continual applied temperature within 120℃and the instant applied temperature can be up to 150℃.
- PA 66 can not be applied in the field of Pharmacy and Food industry.
Specifications
| Model No. | Weaving | Material (Warp) | Material (Weft) | Density Warp (ends/10cm) | Density Weft (ends/10cm) | Weight (g/m²) | Tensile Strength Warp (N/5×20cm) | Tensile Strength Weft (N/5×20cm) | Elongation Warp (%) | Elongation Weft (%) | Air Permeability (mm/s) | Thickness (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 407 | Plain | Long Thread | Long Thread | 240.8 | 187.2 | 195.4 | 1913 | 1539 | 59.4 | 46.4 | 29.7 | 0.42 |
| 663 | Plain | Long Thread | Long Thread | 192.0 | 156.0 | 263.8 | 2307 | 958 | 71.6 | 20.6 | 28.8 | 0.58 |
| 601 | Plain | Long Thread | Long Thread | 132.0 | 160.8 | 222.6 | 2500 | 1776 | 60.0 | 29.8 | 223.6 | 0.49 |
| 301 | Plain | Long Thread | Long Thread | 275.0 | 250.0 | 106.8 | 2016 | 1981 | 67.0 | 62.4 | 114.4 | 0.22 |
Common Weave Patterns
Plain Weave
- Tight structure with high filtration accuracy
Twill Weave
- Balanced permeability and anti-clogging performance
Satin Weave
- Smooth surface for improved cake release
Suitable Equipment
- Filter Press
- Belt Filter Press
- Vacuum Filter
- Centrifuge
- Plate and Frame Filter
- Pressure Leaf Filter
- Other Industrial Solid-Liquid Separation Equipment
