Cotton canvas conveyor belts are a traditional type of conveyor belt featuring a carcass made of natural cotton fiber fabric; they are characterized by flexibility, impact resistance, smooth operation, and ease of installation.
Features
- Low elongation, good adhesion.
- Not easy to be out of shape under high temperature.
- Anti-static and nontoxic.
- It is suitable for short distance and small conveying capacity.
Description
Filmedia® manufactures cotton conveyor belts featuring a wide range of structures, thicknesses, and surface finishes, and provides OEM customization services to businesses and individuals worldwide.
Specification
| Material | Cotton | |
| Width | 100mm-1800mm | |
| Thickness | 1-10mm | |
| Heat resistance | Under 260°C，accepts short time pressure | |
| 300°C is melting point | ||
| Elongation Shrinkage | Warp | 3% |
| Weft | 1.5% | |
| Weight | 1600g/㎡ | |
| Joint | steel buckle joint， seamless connection | |
Application Cases
Food Conveyance

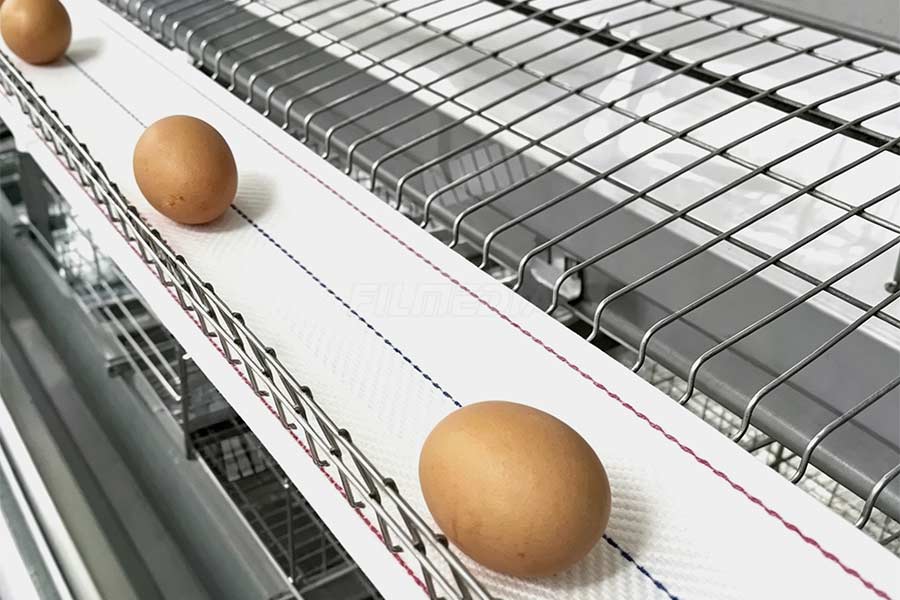

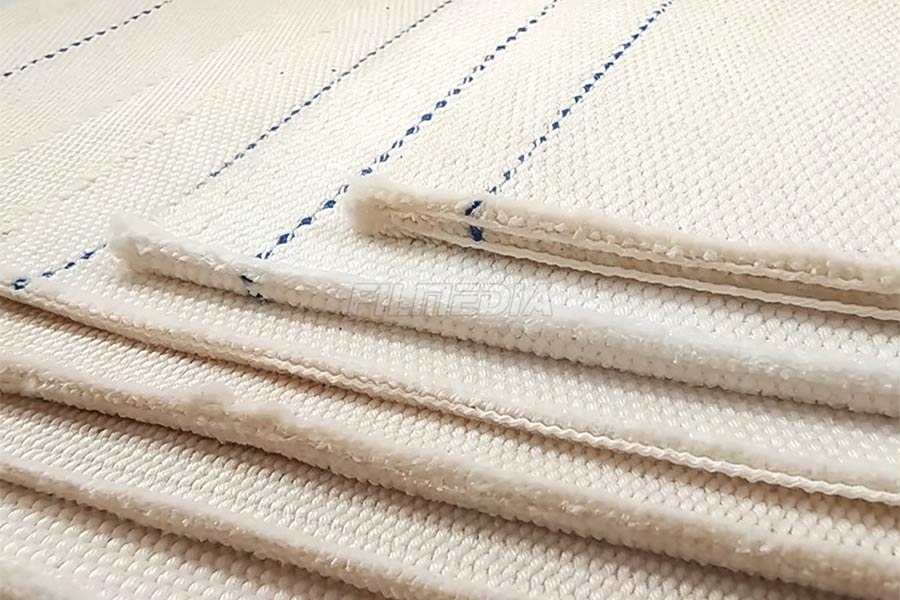

Cotton conveyor belts are primarily used in the food industry—often in conjunction with food processing machinery for transporting items such as eggs, biscuits, and fruit—as well as in the pharmaceutical industry.

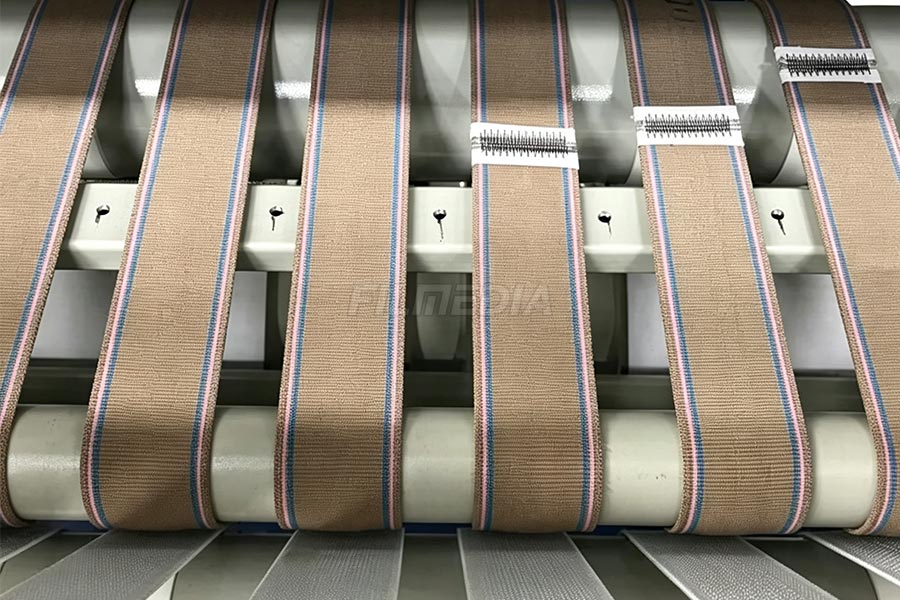

Industrial Production
Additionally, our cotton conveyor belts are suitable for sectors including machinery, electronics, logistics, and chemicals. serving as drive belts for folding, guiding, conveying, and pressing materials. Leveraging the softness and high friction of cotton fibers, they ensure that fabrics or sheet materials remain stably folded during high-speed operation.
