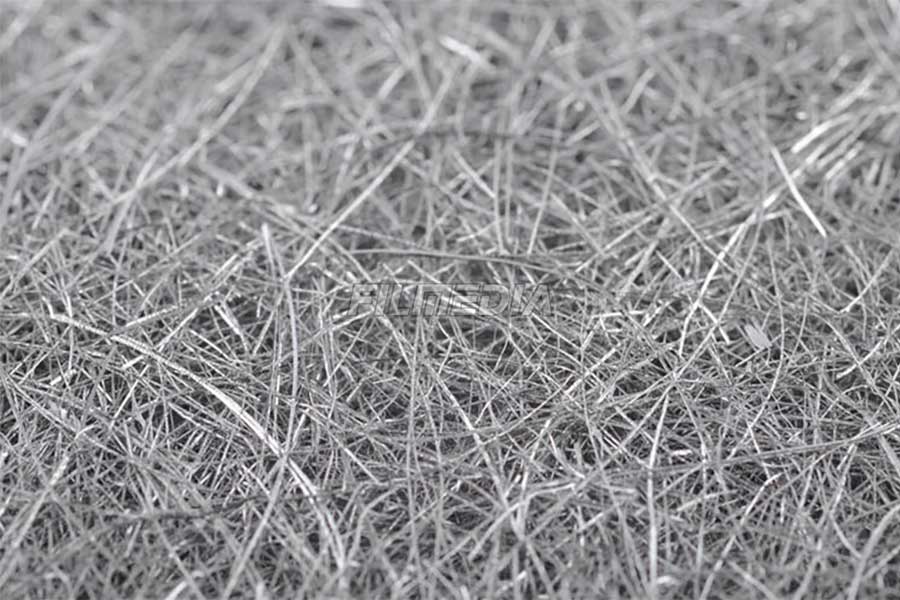

Sintered metal fiber felt is an advanced porous metal filtration material manufactured from micron-scale metal fibers with different diameters through fiber laying, lamination, and high-temperature sintering processes. The multi-layer fiber structure creates a graded pore distribution throughout the material thickness, enabling precise filtration performance and high contaminant holding capacity.
- Material: Stainless steel fibers, titanium fibers, nickel alloy fibers, etc.
- Thickness: 0.1-2 mm, or customized
- Porosity: 20%-80% or customized
- Size: 100x100mm, 200x200mm, 300x300mm, 400x400mm, 500x500mm, 600x600mm or customized
- Hole Shape: Irregular
Description
Product Advantages
- Long service life: Slow pressure drop increase and high dirt-holding capacity extend replacement intervals.
- High porosity and permeability: Low pressure loss, high flow rates, and high filtration efficiency.
- Excellent high-temperature resistance: Capable of long-term operation at 600°C, with short-term resistance up to 1000°C.
- Superior corrosion resistance: Resistant to acids, alkalis, organic solvents, and various chemical media.
- High mechanical strength: Three-dimensional fiber-bonded structure offers excellent compressive strength and dimensional stability.
- Cleanable and reusable: Supports backwashing and ultrasonic cleaning for multiple cycles of use.
- Easy to process and form: Can be welded, bent, stamped, and fabricated into various shapes.
- Diverse structural configurations: Available as tubular, disc, candle, pleated, and other filter element types.
Performance Parameters
| Filtration accuracy（um） | Bubble point pressure（Pa） | Air permeability（L/min·d㎡） | Porosity（%） | Thicknesses（mm） |
| 5 | 6500 | 35 | 75 | 0.5 |
| 7 | 5000 | 55 | 75 | 0.5 |
| 10 | 3700 | 100 | 79 | 0.5 |
| 15 | 2450 | 140 | 78 | 0.5 |
| 20 | 1900 | 260 | 77 | 0.5 |
| 25 | 1500 | 320 | 76 | 0.5 |
| 30 | 1200 | 480 | 75 | 0.5 |
| 40 | 950 | 650 | 77 | 0.5 |
| 60 | 650 | 1100 | 77 | 0.5 |
Available Forms
Sintered metal fiber felt can be manufactured into various filter configurations:
- Filter Sheets

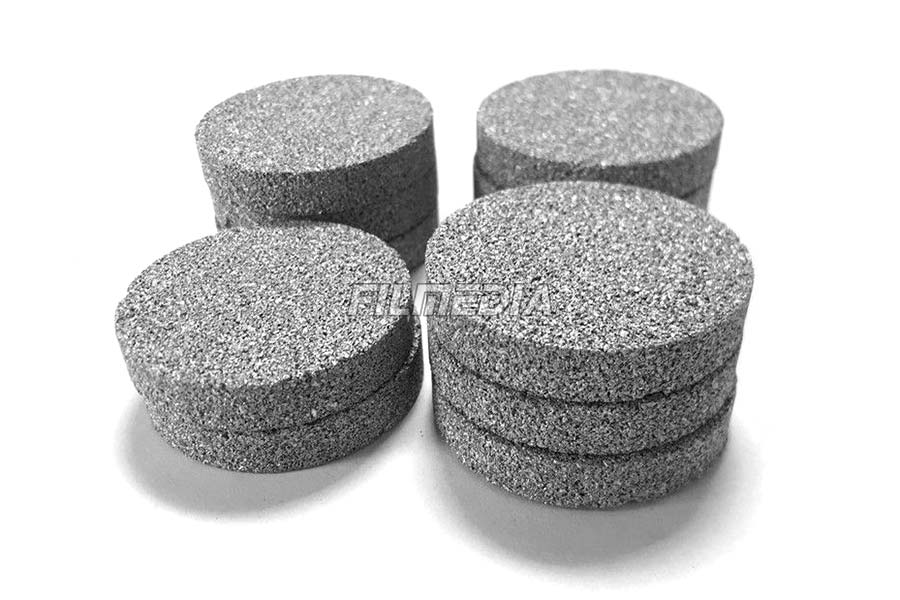

- Filter Discs
- Filter Cartridges
- Candle Filters
- Pleated Filters
Applications
☑ Chemical & Petrochemical Industry
- Acid washing solution filtration
- Polymer melt filtration
- Polyester, viscose, and spandex melt purification
- Catalyst recovery
- Catalyst support applications
- High-temperature chemical process filtration
- Energy, Environmental Protection & Fluid Systems
☑ Fuel filtration systems for automobiles, aircraft, and marine equipment
- Hydraulic oil and lubricating oil precision filtration
- Diesel and gasoline engine exhaust particle filtration
- High-temperature gas filtration
- Industrial dust removal systems
- Hot gas purification systems
☑ Food, Pharmaceutical & Biotechnology
- Pharmaceutical liquid clarification
- Beverage filtration
- Sterile filtration processes
- Steam sterilization systems
- Final protection filtration
- Cleaning and sterilization processes
☑ Electronics & Semiconductor Industry
- Semiconductor process gas filtration
- High-purity chemical filtration
- Ultra-clean process fluid filtration
☑ Other Applications
- Polymer spinning filtration
- Spinning component filtration
- Automotive airbag filter components
- Conductive polymer materials
- Battery electrode substrates
- Fiber-reinforced composite materials
- Security and functional materials
- Vacuum pump protection filters
- Pre-filtration for membrane systems
- Coalescing filtration systems
- Filter membrane support layers
