Filter Cartridge End Caps

Home » Filter Bag Accessories

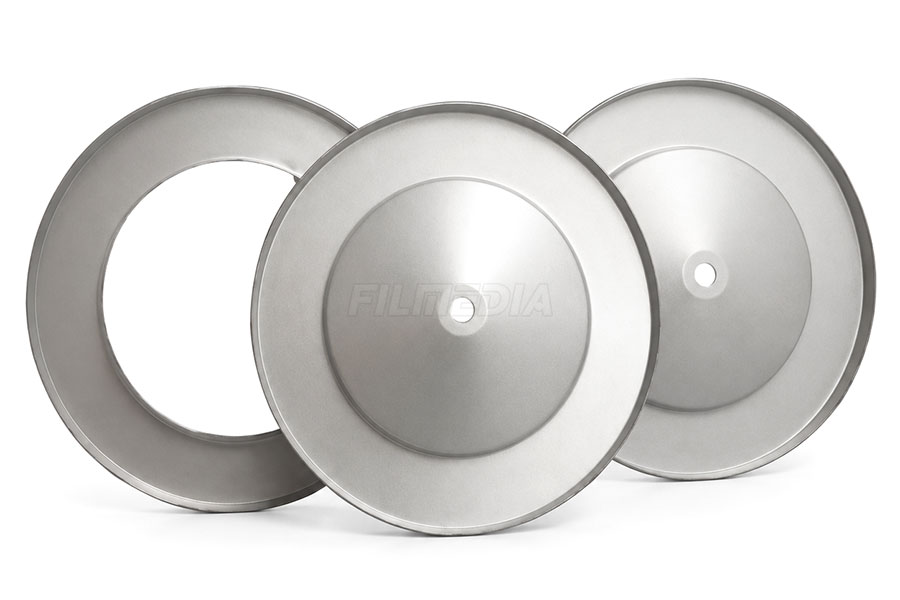

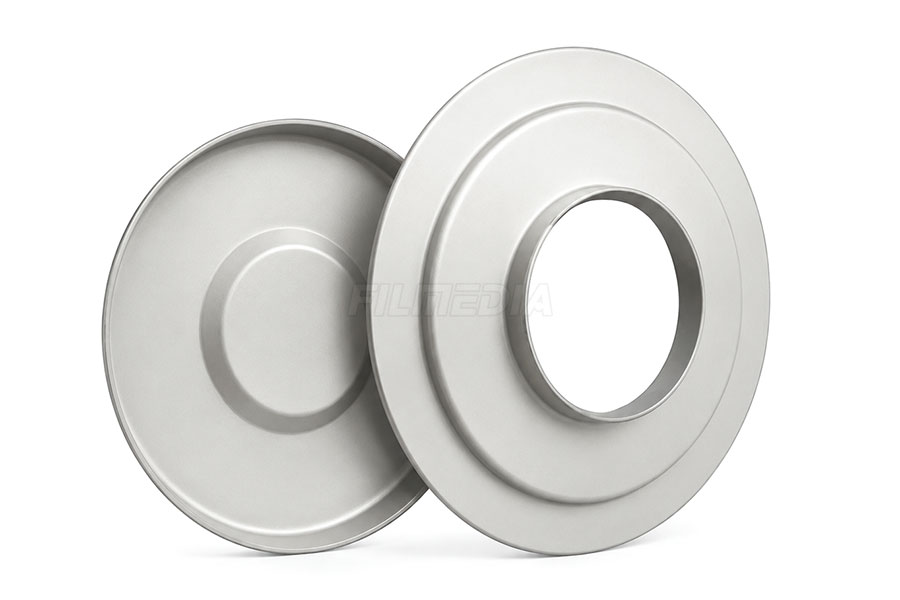

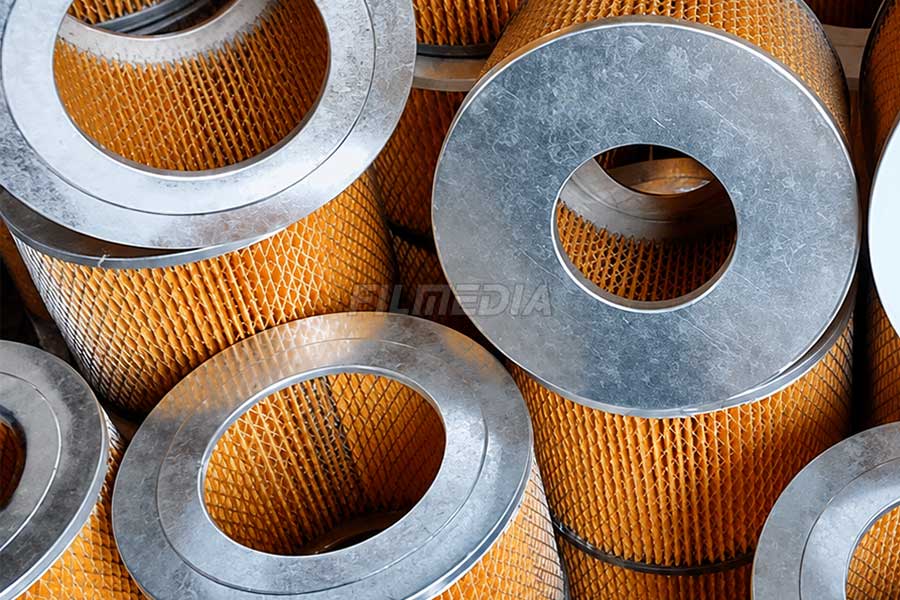

End caps are structural sealing components installed at both ends of a filter cartridge. They are used to seal the filter media, secure the internal structure, and connect the cartridge to the filter housing. They play a critical role in ensuring filtration integrity and preventing leakage or bypass.

  • Material: Galvanized steel, stainless steel, anti fingerprint, copper/brass, etc customized
  • Thickness: 0.30 mm to 3.00 mm
  • Outer Diameter：20.00 mm to 1000 mm
  • Types: Open/closed, with/without holes, customized
Inquiry
WhatsApp

Description

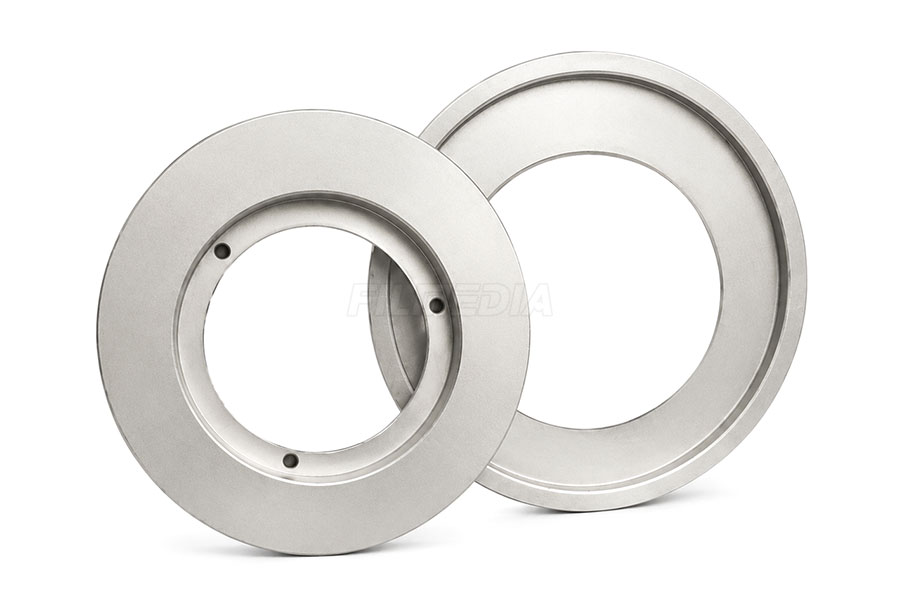

01. Open Round End Cap with Tri-Bolt Holes
ItemInchesMillimeters
Outer diameter12.75323.85
Inner diameter8.5215.9
Inner height0.5413.716
Outer height0.512.7
Inner rim diameter6.75171.45
02. Open Round End Cap with Outer Lip
 ItemInchesMillimeters
Outer diameter12.75323.85
Inner diameter8.5215.9
Inner diameter0.62515.875
Outer height0.3689.3472
Lip0.3759.525
01. Open Round End Cap
 ItemInchesMillimeters
Outer diameter12.75323.85
Inner diameter8.5215.9
Inner height0.512.7
Outer Height0.512.7
02. Closed Round End Cap
 Item InchesMillimeters
Outer diameter12.75323.85
Inner diameter8.375212.725
Inner height0.512.7
outer height0.512.7
03. Closed Round End Cap with Bolt Hole
 Item  InchesMillimeters
Outer diameter12.75323.85
Inner diameter8.375212.725
Inner height0.512.7
Outer height0.512.7
Bolt Hole0.62515.875
01. Open Round End Cap with Flange
  Item  InchesMillimeters
Outer diameter5.75146.05
Inner diameter2.563.5
Inner height0.512.7
Outer height0.2787.0612
02. Closed Round End Cap
 ItemInchesMillimeters
Outer diameter5.25133.35
Inner diameter2.563.5
Inner height0.87522.225
Outer height0.1724.3688
