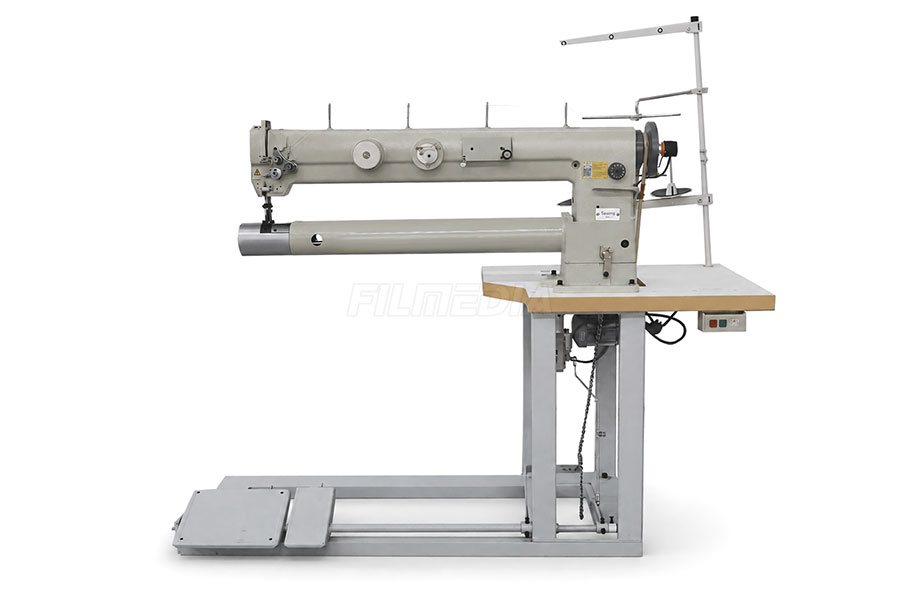

Long Arm Double Needle Sewing Machine used for stitching reverse filter bags. This product adopts a long arm design, which can handle the stitching of extremely long cylindrical work pieces. The double stitches are straight and beautiful, and the equipment is easy to operate and has high efficiency. It is suitable for sewing thick material and also has the function of synchronous feeding in both upper and lower.
Description
Optional model:
Long arm sewing machine without synchronous rotation FM-CFY-760 ,FM-CFY-960,FM-CFY-1100 long arm sewing machine with synchronous rotation FM-CFY-TB-760,FM-CFY-TB-960,FM-CFY-TB-1100
Basic Parameters
| Item | Specification |
|---|---|
| Power | 0.37kw |
| Rated Voltage | AC220V |
| Rated Frequency | 50-60HZ |
| Dimension | 1300×700×1500mm |
| Needle Pitch | 1/2 or customized |
| Max. Sewing Speed | 1350 stitches/min |
Main Functions
- Suitable for sewing thick material.
- Suitable for sewing reversed air filter bags up to 10 meters.
- Suitable for sewing support ring and reinforcement.
- The function of synchronous feeding in both upper and lower.
- Working Length: 760mm, 860mm, 960mm, 1100mm.
Features of Long Arm Double Needle Sewing Machine:
- Suitable for sewing thick material.
- Suitable for sewing reversed air filter bags up to 10 meters.
- Suitable for sewing support ring and reinforcement.
- The function of synchronous feeding in both upper and lower.
- Working length can reach 850mm.
Advantages:
1.Suitable coupling assembly design
2.Automatic lubrication system
3.DELTA motor
4.Stainless steel ring die
5.Full stainless steel feeder
6.Full stainless steel conditioner
