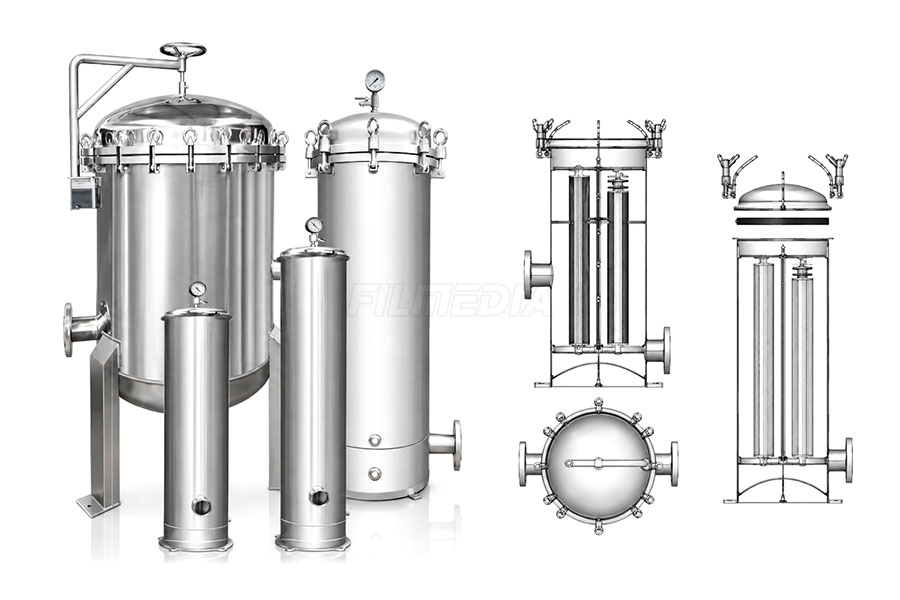

It is a fully automated, heavy-duty industrial filtration system engineered for large-scale, continuous liquid-solid separation. By clustering multiple filter cartridges parallelly inside a single pressure vessel, it delivers a massive effective filtration area within a space-saving footprint, making it the industry standard for high-throughput and high-solid-loading processes.
Description
Filmedia® provides customized single and multi cartridge filter housings for global industrial clients and individual customers, delivering tailored filtration solutions to meet diverse process requirements across a wide range of applications.
Features
- Massive Filtration Area: Parallel multi-tube design handles high flow rates and heavy cake buildup seamlessly.
- Fully Automated Backblowing: Utilizes compressed air, nitrogen, or process gas to backblow the cartridges. The flexible structure shrugs off the filter cake instantly without manual intervention.
- Dry or Wet Discharge: Supports enclosed dry cake discharge via bottom valves or wet cake flushing, eliminating operator exposure to hazardous materials.
- Continuous Operation: Can be configured for sequential/segmented backwashing to maintain uninterrupted system flow.
Specifications
| Material | Housing | SS304, SS316L |
| O-ring | Silicone, Viton, EPDM, Teflon, etc | |
| Surface Finish | Interior/Exterior | Mirror polish, interior Ra≤ 0.4um, exterior Ra≤ 0.6um |
| Connections | Inlet/outlet | Tri Clamp |
| Flange | ||
| Thread | ||
| DIN 11851 | ||
| Vent | Φ5mm hose | |
| Drain | Male, Tri Clamp, as your request | |
| Lid/Cover type | Swing bolts, tri clamp(only for single round) | |
| Length | 5 inch, 10 inch, 20 inch, 30 inch, 40 inch | |
| Operating Pressure | Max. 6 bar or higher as your request | |
| Operating Temp. | Max. 105 ℃ (sterilization 150 ℃) | |
| Cartridge End | DOE, 222, 226, NPT, etc | |
| Cartridge Capacity | 1,3,5,7,9,10,12,15,16, 18, 20, 25, etc | |
Typical Applications
- Environmental & Water Treatment: Fine filtration of industrial wastewater, brines, and chemical waste streams.
- Bulk Chemicals & Petrochemicals: Clarification of resins, polymers, PTA, and chemical intermediates.
- Industrial Catalyst Recovery: Large-scale recovery and recycling of Raney Nickel, Palladium, or Platinum catalysts from hydrogenation reactors.
- Food & Beverage Industry: Large-volume decolorization and clarification of edible oils, syrups, and sugar juices using activated carbon or diatomite.
