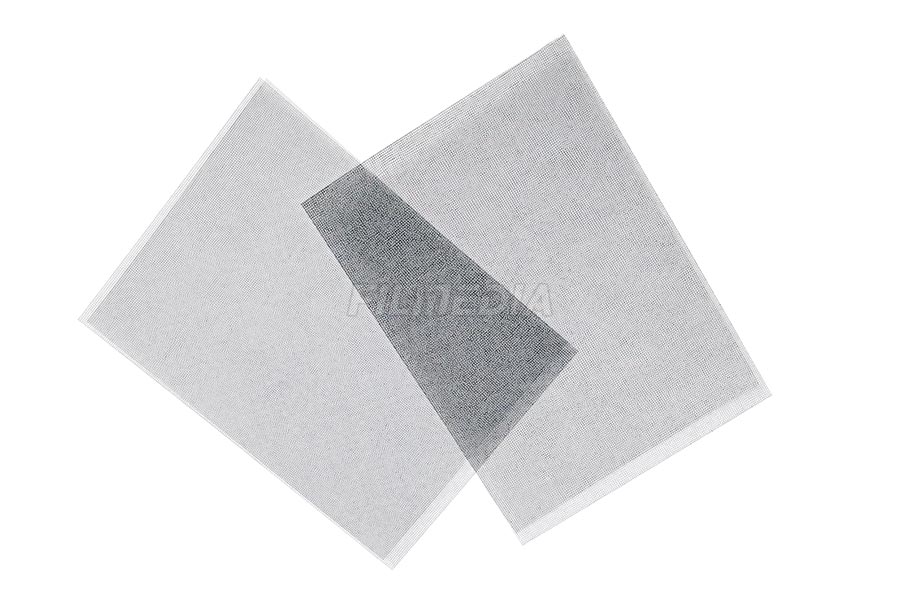

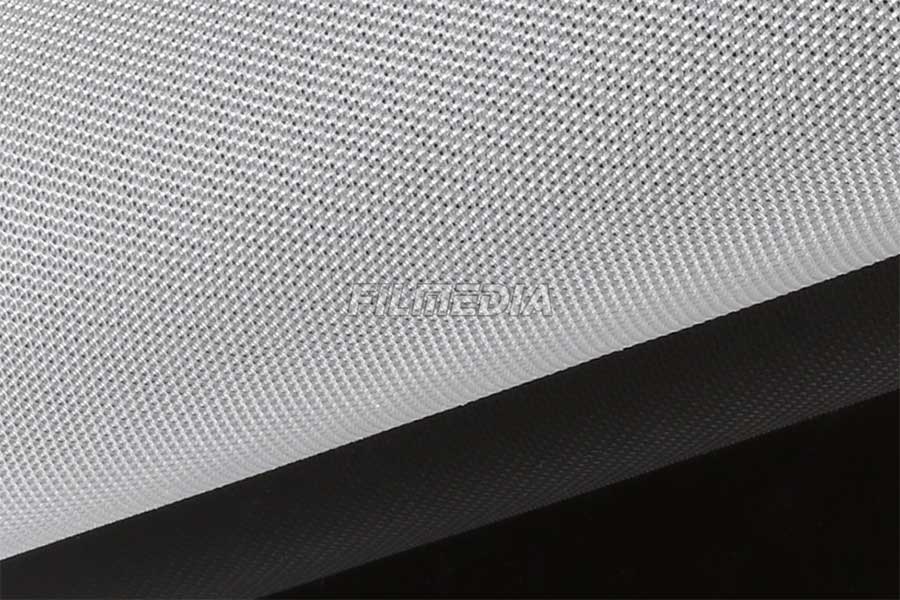

Nylon double filament mesh is a precision-woven industrial mesh manufactured from high-quality nylon double-filament yarns. Compared with conventional monofilament mesh, double-filament mesh offers higher tensile strength, improved flexibility, and better wear resistance while maintaining excellent filtration accuracy and flow performance. It is widely used in liquid filtration, industrial screening, food processing, pharmaceutical production, chemical filtration, and various separation applications.
Description
As a premium woven filter cloth manufacturer, Fillmedia® leverages its extensive industry experience and team of technical experts to deeply understand filtration needs under diverse operating conditions. We provide scientifically rigorous, practical, reliable, and customized filtration solutions to meet our customers’ specific application requirements. We offer comprehensive technical support covering material selection, product design, and process optimization, aiming to improve filtration efficiency, extend product lifespan, and reduce overall operating costs.
Product Features
- High tensile strength and excellent dimensional stability.
- Better flexibility than monofilament mesh.
- Outstanding abrasion and fatigue resistance.
- Smooth mesh surface for easy cleaning and low material adhesion.
- Excellent resistance to alkalis, oils, grease, and most organic solvents.
- Good impact resistance and long service life.
- Uniform mesh openings for consistent filtration performance.
- High flow rate with low pressure drop.
- Lightweight and easy to fabricate into filter bags, discs, tubes, and custom components.
- Reusable and washable for extended service life.
Specifications
| Item | Specification |
|---|---|
| Material | 100% Nylon (PA6 / PA66) |
| Weave Type | Plain Weave |
| Filtration Rating | 20–1000 μm (customizable) |
| Opening Size | Customized |
| Thread Type | Double Filament |
| Working Temperature | Up to 120°C |
| Melting Point | 210–260°C (depending on nylon grade) |
| Color | White, Yellow or Customized |
| Roll Width | Up to 3.9 m |
| Roll Length | 30–100 m or Customized |
Performance Parameters
| Item | material | mesh count | yarn diameter | Mesh opening | open area | thickness | weight | |
| NO | mesh/cm | mesh/inch | microns | microns | % | microns | g/㎡ | |
| JFP30 | PA6 | 30 | 76 | 60*2 | 121 | 40 | 115 | 45 |
| JFP33 | PA6 | 33 | 84 | 60*2 | 181 | 36 | 115 | 50 |
| JFP36 | PA6 | 36 | 90 | 60*2 | 156 | 32 | 115 | 54 |
| JFP39 | PA6 | 39 | 100 | 60*2 | 135 | 28 | 120 | 58 |
| JFP42 | PA6 | 42 | 107 | 60*2 | 116 | 24 | 120 | 62 |
| JFP46 | PA6 | 46 | 120 | 50*2 | 118 | 29 | 105 | 48 |
| JFP50 | PA6 | 50 | 127 | 50*2 | 101 | 25 | 105 | 52 |
| JFP54 | PA6 | 54 | 137 | 40*2 | 99 | 29 | 85 | 36 |
| JFP58 | PA6 | 58 | 147 | 40*2 | 86 | 25 | 87 | 38.5 |
| JPP62 | PA6 | 62 | 157 | 40*2 | 75 | 22 | 88 | 41 |

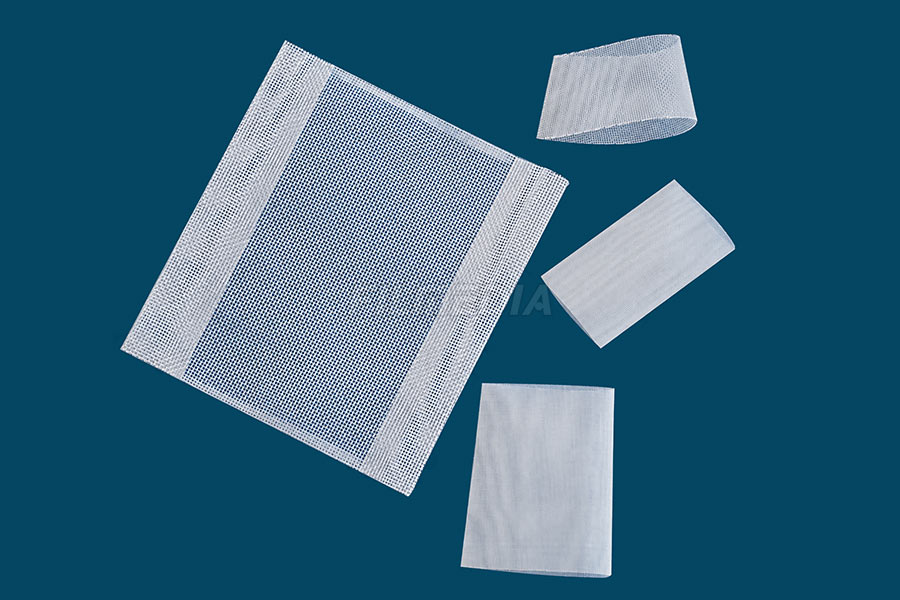

Available Fabrication
- Filter bags
- Filter discs
- Filter tubes
- Filter sleeves
- Die-cut mesh parts
- Pleated filter elements
- Custom-shaped filtration components
Applications
- Liquid filtration
- Water treatment systems
- Food and beverage processing
- Pharmaceutical filtration
- Chemical processing
- Paint and coating filtration
- Resin and adhesive filtration
- Ink filtration
- Agriculture and aquaculture
- Screen printing
- Industrial sieving and grading
- Dust collection support layers
