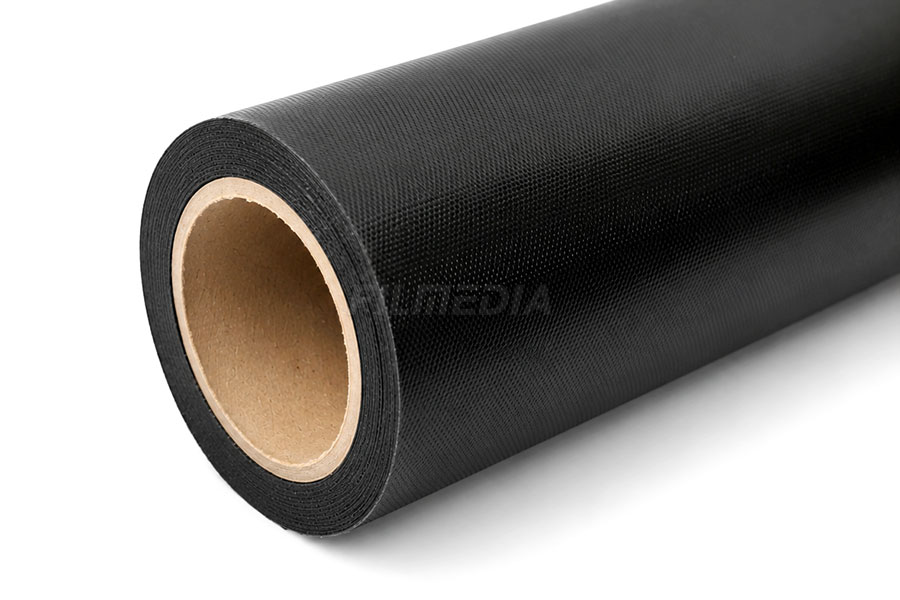

As a leading exporter of filter media, Filmedia ® Everspring’s PA (Nylon) filter cloth was export to lots of countries covering Asia, Europe and America and enjoy a good reputation among our customers.
Despite our conventional items, we also welcome other customized order.
Capacity:2000 m² a day.
FAW: 200-850gsm and other customized weight.
Weave: plain, twill, satin.
Description
Type
- Monofilament PA Filter Cloth
(1) PA filament yarn filter cloth
(2) PA staple yarn filter cloth
- Multifilament PA Filter Cloth
(1) PA filament yarn filter cloth
(2) PA staple yarn filter cloth
Monofilament PA Filter Cloth compared with Multifilament PA Filter Cloth
Performance of monofilament PA Filter Cloth:
- Great permeability of air and water.
- Less jam possibility.
- Filter cake can be easily released and recycled.
Performance of multifilament PA filter cloth:
- Great strength,especially its anti-abrasion is top-ranked in all general fibers.
- Resist strong alkali and weak acid.
- The strength expense can be ignored after dealt with NaoH(10%),as Polyamide is used 16h in the state of 90℃.
- It’s continual applied temperature within 120℃and the instant applied temperature can be up to 150℃.
- PA 66 can not be applied in the field of Pharmacy and Food industry.
SPECIFICATION of monofilament PA filter cloth
| MODEL .NO | WEIGHT (g/m2) | SPLITTING STRENGTH (N/5╳20cm) | SPLITTING AND ELONGATION(%) | AIR PERMEABILITY (mm/s) | THICKNESS (mm) | ||
| WARP | WEFT | WARP | WEFT | ||||
| PA5815 | 540 | 5340 | 2258 | 28.7 | 24.6 | 818 | 0.85 |
| PA5133 | 590 | 7304 | 2550 | 37.8 | 26.5 | 619.4 | 1.00 |
| PA2213 | 280 | 3111 | 1825 | 25.8 | 24.2 | 2268.36 | 0.52 |
| PA2812 Dright | 360 | 3585 | 2165 | 33.5 | 25.8 | 2239.12 | 0.65 |
| PA2812 | 350 | 3780 | 2456 | ||||
SPECIFICATION of Mutifilament PA Filter Cloth
| MODEL NO | WEAVING | MATERIAL | DENSITY(radlx/10cm) | WEIGHT(g/m2) | ||
| WARP | WEFT | WARP | WEFT | |||
| 407 | Plain | Long thread | Long thread | 240.8 | 187.2 | 195.4 |
| 663 | Plain | Long thread | Long thread | 192 | 156 | 263.8 |
| 601 | Plain | Long thread | Long thread | 132 | 160.8 | 222.6 |
| 301 | Plain | Long thread | Long thread | 275 | 250 | 106.8 |
| MODEL NO | SPLITTING STRENGTH (N/5╳20cm) | SPLITTING AND ENLONGATION(%) | AIR PERMEABILITY (mm/s) | THICKNESS(mm) | ||
| WARP | WEFT | WARP | WEFT | |||
| 407 | 1913 | 1539 | 59.4 | 46.4 | 29.7 | 0.42 |
| 663 | 2307 | 958 | 71.6 | 20.6 | 28.8 | 0.58 |
| 601 | 2500 | 1776 | 60 | 29.8 | 223.6 | 0.49 |
| 301 | 2016 | 1981 | 67 | 62.4 | 114.4 | 0.22 |
Usage
Widely used in the field of coal, petroleum, chemical, pharmacy, metallurgy and so on. More information about woven filter cloth, please here!
