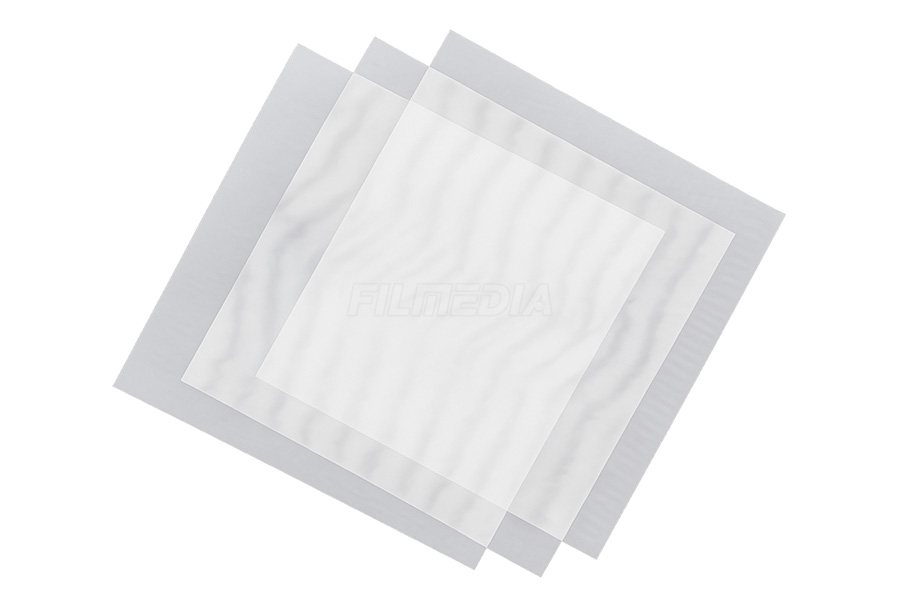

Nylon Monofilament Mesh

Home » Filter Mesh

---

Description

---

As a premium woven filter cloth manufacturer, Fillmedia® leverages its extensive industry experience and team of technical experts to deeply understand filtration needs under diverse operating conditions. We provide scientifically rigorous, practical, reliable, and customized filtration solutions to meet our customers’ specific application requirements. We offer comprehensive technical support covering material selection, product design, and process optimization, aiming to improve filtration efficiency, extend product lifespan, and reduce overall operating costs.

---

Features

• Manufactured from premium nylon monofilament for consistent performance.
• Uniform thread diameter and precise mesh openings ensure accurate filtration.
• High tensile strength, excellent toughness, and superior elongation.
• Outstanding elasticity and recovery after repeated use.
• Smooth surface minimizes particle adhesion and simplifies cleaning.
• Excellent wear resistance for extended service life.
• Resistant to oils, grease, and most weak acids and alkalis.
• Good water resistance and weather resistance.
• Stable chemical and physical properties during long-term operation.
• Excellent electrical insulation properties.
• Low friction coefficient for improved filtration efficiency.
• Non-toxic, odorless, and tasteless, suitable for food-contact applications.

Specification

Item	Specification
Material	Nylon Monofilament (PA6 / PA66 available)
Weave Type	Plain Weave
Mesh	5, 10, 25, 30, 40, 50, 60, 70, 80, 90, 100, 120, 150, 200, 250, 300, 400, 500 μm
Continuous Operating Temperature	Up to 120°C

Performance Parameters

Item	material	mesh count		yarn diameter	Mesh opening	open area	thickness	weight
NO		mesh/cm	mesh/inch	microns	microns	%	microns	g/㎡
JPP4	PA6	4	10	550	1950	61	950	262
JPP5	PA6	5	12	500	1500	56	850	271
JPP6	PA6	6	16	400	1267	58	780	208
JPP7	PA6	7	18	350	1079	57	675	186
JPP8	PA6	8	20	350	900	52	685	212
JPP9	PA6	9	24	250	860	60	455	145
JPP10	PA6	10	25	300	700	49	576	195
JPP12	PA6	12	30	250	583	49	470	162
		12	30	300	533	41	585	234
JPP14	PA6	12	30	300	414	34	595	273
JPP16	PA6	16	40	200	425	46	370	139
		16	40	250	375	36	485	217
JPP20	PA6	20	50	150	350	49	375	98
		20	50	200	300	36	385	173
JPP24	PA6	24	60	150	267	41	285	117
JPP28	PA6	28	70	120	237	44	215	87
JPP30	PA6	30	76	120	213	41	225	94
JPP32	PA6	32	80	100	213	46	165	69
JPP36	PA6	36	90	100	178	41	178	78
JPP40	PA6	40	100	100	150	36	190	87
JPP43	PA6	43	110	80	152	43	135	60
JPP48	PA6	48	120	80	130	38	145	62
JPP56	PA6	56	140	60	120	44	85	44
JPP59	PA6	59	150	60	110	42	98	46
JPP64	PA7	64	160	50	100	37	105	50
JPP72	PA8	72	180	50	90	41	82	39
JPP80	PA9	80	200	40	75	36	90	43
JPP100	PA10	100	250	40	60	36	65	35
JPP120	PA11	120	305	40	43	25	70	42
JPP130	PA12	130	330	40	37	23	75	45

Applications

Nylon monofilament mesh is widely used in industrial filtration, liquid processing, and precision screening applications.

• Industrial liquid filtration
• Petroleum and petrochemical processing
• Chemical filtration
• Food and beverage filtration
• Pharmaceutical filtration
• Water treatment systems
• Screen printing mesh
• Paint, ink, and coating filtration
• Air conditioner and HVAC filter mesh
• Air filtration systems
• Milk, juice, wine, beer, cheese, edible oil, and soy milk filtration
• Flour milling and food powder sieving
• Resin and adhesive filtration
• Fishing nets and aquaculture equipment
