Description

---

As a premium woven filter cloth manufacturer, Fillmedia® leverages its extensive industry experience and team of technical experts to deeply understand filtration needs under diverse operating conditions. We provide scientifically rigorous, practical, reliable, and customized filtration solutions to meet our customers’ specific application requirements. We offer comprehensive technical support covering material selection, product design, and process optimization, aiming to improve filtration efficiency, extend product lifespan, and reduce overall operating costs.

---

Product Features

• High Strength and Excellent Wear Resistance

Manufactured from high-strength polyester monofilament yarns, the fabric offers excellent tensile strength and abrasion resistance. It performs reliably under continuous operation, high filtration pressure, and severe mechanical friction, resulting in a long service life and reduced maintenance costs.

• Uniform Mesh Opening and Stable Filtration Accuracy

Precision weaving creates consistent mesh openings that ensure stable filtration performance. Liquids pass through quickly while particles are effectively retained, improving separation efficiency and product quality.

• Excellent Water Permeability and Air Permeability

The open monofilament structure provides high flow rates with low resistance, allowing rapid filtration and efficient dewatering while reducing operating costs and improving production efficiency.

• Outstanding Chemical Resistance

Polyester monofilament offers excellent resistance to acids, oils, and many common chemicals, along with moderate alkali resistance. It maintains stable performance in a wide range of industrial filtration environments.

• Smooth Surface with Anti-Clogging Performance

The smooth monofilament surface prevents particles from becoming embedded within the fabric. Filter cakes are easily released during cleaning, minimizing clogging and maintaining stable filtration efficiency.

• Easy Cleaning and Reusability

The cloth can be regenerated through high-pressure water washing or chemical cleaning, allowing multiple reuse cycles while maintaining high filtration performance and reducing operating costs.

• Excellent Dimensional Stability

Heat-setting treatment ensures excellent dimensional stability, preventing deformation during long-term operation and maintaining consistent filtration precision.

---

Performance Parameters

Specification (/cm)	Meshcount (mesh/inch）	Thread Diameter    (μm）	Mesh opening     (μm）	Open area%	Thickness    (μm）	Theoretic ink volme(cm³/m²）	Suggestion Highest Tension
14	25	250	700	49	620	323	66
16	36	200	514	52	410	229	61
16	40	200	425	46	400	201	58
18	40	250	375	36	500	198	61
20	45	150	405	53	300	165	57
20	50	100	400	64	200	128	50
20	50	150	350	49	300	147	53
24	50	180	320	41	350	152	56
24	56	100	316	58	190	109	49
24	60	120	297	51	240	124	52
28	60	150	267	41	300	135	56
28	70	80	277	60	150	90	46
30	70	100	257	52	200	114	49
32	76	120	213	41	240	102	55
32	80	80	232	55	140	77	40
32	80	100	213	46	200	100	54
34	80	120	193	38	240	93	60
36	86	100	194	44	221	97	56
36	90	80	198	51	156	79	48
39	90	100	178	41	216	89	56
39	99	55	201	62	100	62	48
39	99	71	185	52	135	71	56
40	99	78	178	48	150	73	30
43	100	80	170	46	130	69	48
47	110	55	158	55	105	58	33
47	120	64	149	49	130	64	35
47	120	71	142	44	135	60	47
51	130	55	140	51	100	51	30
51	130	71	125	41	140	57	43
53	135	55	134	50	105	53	34
53	135	64	125	44	120	52	40
53	135	71	118	39	135	53	47
56	142	55	124	48	111	53	35
56	142	64	115	41	115	47	41
59	150	71	114	46	105	48	31
59	150	55	105	39	120	46	40
61	155	64	109	44	110	49	32
61	155	55	100	37	115	43	41
64	163	64	101	42	105	44	33
64	163	55	92	35	120	42	42
68	173	64	92	39	107	42	36
68	173	55	83	32	130	41	40
72	183	64	94	46	80	37	34
72	183	55	84	37	100	37	38
77	195	64	75	33	105	35	33
80	200	45	77	38	92	35	34
90	230	55	72	42	70	29	30
90	230	55	66	35	85	30	32
100	250	48	61	37	70	26	32
110	280	45	52	33	85	28	34
120	300	48	42	26	70	16	33
120	300	40	47	32	85	18	34
140	350	40	37	24	68	14	33
150	380	34	34	26	55	13	31
165	420	31	25	17	46	10	31

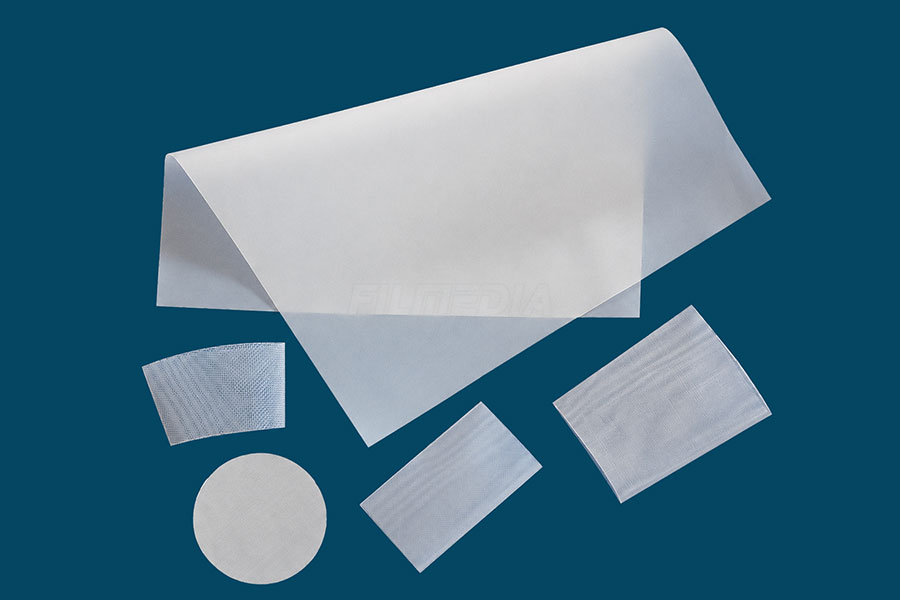

Custom Fabrication Services

We offer complete converting and fabrication services according to customer specifications.

• Slitting into virtually any width, including ultra-narrow strips.

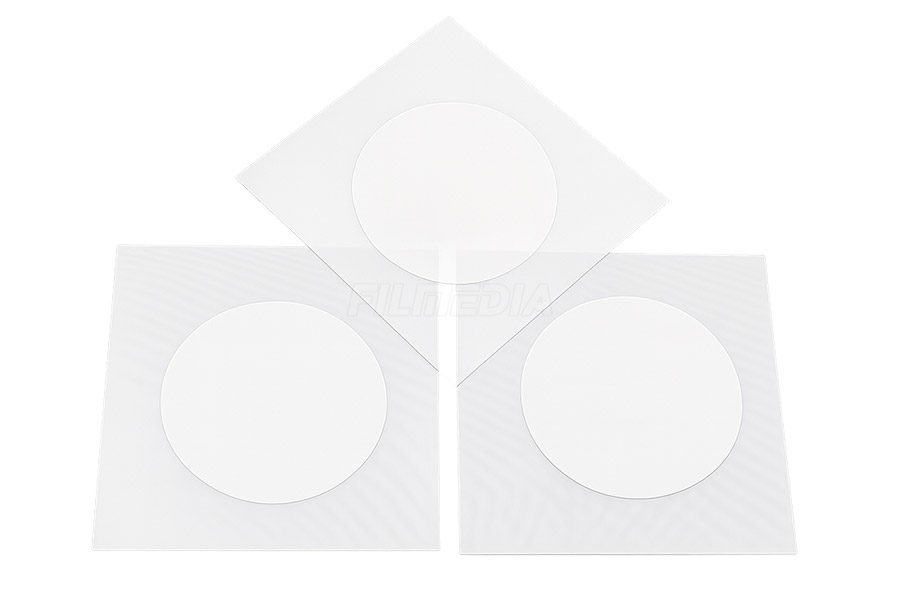

• Die-cutting into round discs, square sheets, rectangular pieces, and custom-shaped filters.
• Fabrication into filter bags, filter sleeves, filter tubes, and other filtration components.
• Multiple processing options including heat cutting, ultrasonic cutting, sewing, edge binding, and custom finishing.

Application Industries

• Water and aqueous solutions
• Acid and alkaline solutions
• Petroleum products
• Lubricating oils
• Edible oils
• Alcohol and organic solvents
• Paints and coatings
• Printing inks
• Resins and adhesives
• Pigments and dyes
• Pharmaceutical liquids
• Fruit juice, syrup, beer, and wine
• Starch and corn slurry
• Mineral slurry and tailings
• Industrial powders and granules
• Air filtration and dust collection
