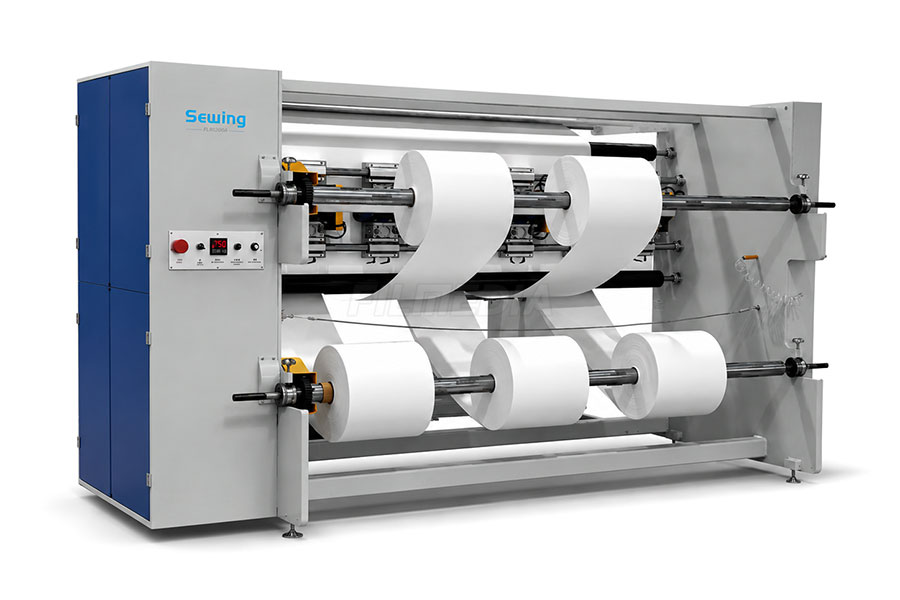

Roll slitting machine is designed for precision slitting of wide rolls into multiple narrow rolls with high accuracy and efficiency. It is widely used for filter media, nonwoven fabrics, needle felt, woven fabrics, films, paper, aluminum foil, and other flexible materials. The machine ensures smooth edges, consistent width, and stable rewinding, making it an essential piece of equipment for roll material processing.
Description
Main Functions
- Suitable for slitting Needle Felt, Woven Fiberglass Filter Cloth and also Air Slide Fabric.
- Photoelectric sensor correction function.
- Length recording function.
- With tension control mechanism, the tension of the filter material is constant, and the cutting width is consistent.
- Intelligent centralized control, humanized design, more convenient to use.
Basic Parameters
| Item | Value |
|---|---|
| Power | 4kw |
| Rated Voltage | AC380V |
| Rated Frequency | 50-60HZ |
| Dimension | 3500×3200×2350mm |
| Slitting Speed | 0-20m/min |
| Max. Slitting Width | 2.4m |
| Compressed Air Pressure | 4-4.5kg/cm² |
The Advantage of Our Roll Slitting Machine
- High cutting efficiency and stable operation.
- Suitable for slitting a variety of organic fiber and inorganic fiber filter materials. .
- With the photoelectric sensor correction function, the cutting margin is smaller and the efficiency is higher.
- Orbital tool post design makes it easier to adjust the tool distance.
- With the tension control mechanism, the filter material tension is constant and the cutting width is consistent.
- Intelligent centralized control, humanized design, more convenient to use.
