It is a compact, high-precision pressure filtration system designed for low-flow, small-batch, or pilot-scale applications. Housing a single filter cartridge within the vessel, it minimizes liquid hold-up (heel) and is ideal for handling high-value fluids or hazardous materials where product loss must be strictly contained.
Description
Filmedia® provides customized single and multi cartridge filter housings for global industrial clients and individual customers, delivering tailored filtration solutions to meet diverse process requirements across a wide range of applications.
Features
- Compact Footprint: Minimal space requirement, easy to integrate into existing pilot lines or laboratory skids.
- Low Product Retention: Optimized vessel design ensures maximum product recovery and minimal fluid residue.
- Flexible Cake Handling: Supports manual cleaning or simple localized backwashing/backblowing.
- Pre-coat Compatible: Can be used with filter aids (e.g., diatomaceous earth) for micro-clarification.
Typical Applications
- Pilot Plants & Labs: Small-batch chemical synthesis and R&D filtration.
- Pre-filtration: Guard/safety filtration ahead of Reverse Osmosis (RO) systems or chromatography columns.
- Precious Liquids: Clarification of expensive pharmaceuticals, cosmetics, or volatile solvents.
- Catalyst Recovery: Small-scale entrapment and recovery of precious metal catalysts (e.g., Palladium on carbon).

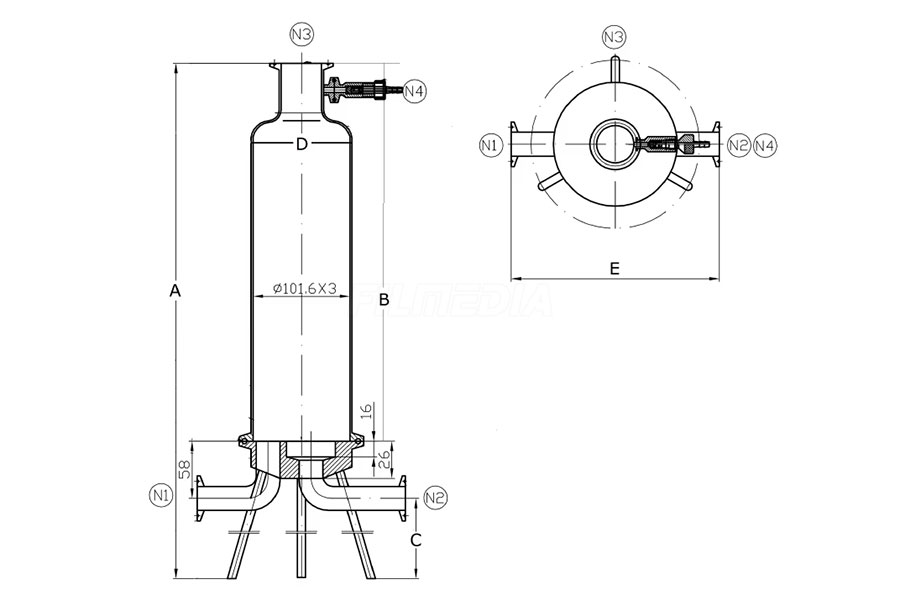

Common Specifications (Customizable)
| Model Number | Theoretical Flow (T/h) | Cartridge Length | Connection Mode | Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 105 | 0.3 | 5″ | Clamp | 50.5 | 483 | 255 | 170 | 102 | 210 |
| 110 | 0.5 | 10″ | Clamp | 50.5 | 608 | 380 | 170 | 102 | 210 |
| 120 | 1 | 20″ | Clamp | 50.5 | 858 | 630 | 170 | 102 | 210 |
| 130 | 1.5 | 30″ | Clamp | 50.5 | 1108 | 880 | 170 | 102 | 210 |
