Filmedia supplies high-quality stainless steel pleated filter cartridges designed for demanding industrial filtration applications. Manufactured with a precision-engineered multilayer laminated stainless steel mesh structure, these cartridges provide a large effective filtration area, high mechanical strength, excellent temperature and corrosion resistance, and outstanding durability. Their cleanable and reusable design delivers a long service life while significantly reducing maintenance and operating costs.
Engineered with a precision multi-layer pleated structure, these cartridges multiply the effective filtration area within the same footprint. This drastically enhances dirt-holding capacity, minimizes pressure drop, and ensures a significantly longer service life compared to conventional single-layer metal mesh filters.
The tightly stacked, multi-layer laminated structure guarantees exceptional mechanical stability. It resists deformation, collapse, or damage under high temperatures and intense differential pressures, making it the ideal choice for the most demanding and hostile operating environments.
Available in a wide range of high-end materials. It boasts excellent resistance to strong acids, alkalis, salts, and various complex chemical media, substantially reducing replacement frequency and overall maintenance costs.
Featuring an all-metal rigid woven structure with smooth, uniform pores, the cartridge supports repeated backwashing and physicochemical regeneration. This reusable design effectively resolves frequent clogging issues, dramatically lowering your long-term operational costs.
Description
Stainless steel cartridge also can be called corrugated candle filter, it mainly adopts stainless steel sintered fiber felt and stainless steel woven mesh, processed by folding wave technology. Stainless steel sintered cartridge can be made of multi-layer structure, has high porosity, high dirty holding capacity.
Specifications
| Item | Specification |
|---|---|
| Material | Stainless Steel 304/316L, Titanium TA1/TA2, Hastelloy, Monel, Duplex Stainless Steel |
| Outside Diameter | 30–180 mm |
| Length | 100–1200 mm |
| Standard Size | 10″, 20″, Custom Length & Diameter Available |
| Pleat Height | 5–25 mm |
| Filtration Rating | 0.5–150 μm (Customizable) |
| Structure | Multi-layer Woven Wire Mesh Pleated Laminated Structure |
| Filter Medium | 2-layer, 3-layer, or Multi-layer Stainless Steel Wire Mesh Laminates |
| Inner Support Core | Perforated Tube or Spiral Support Tube |

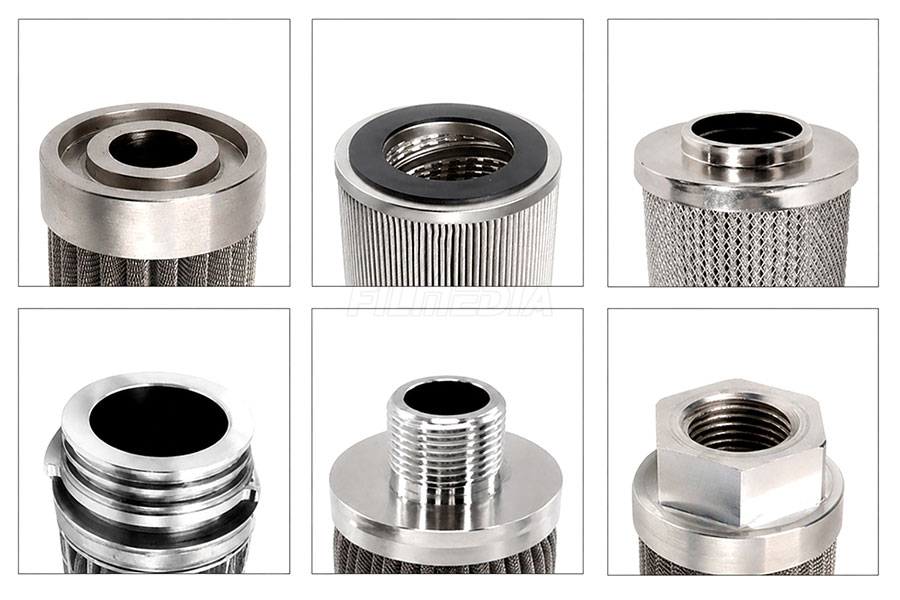

| End Connection | Threaded, Flanged, or Sealing Ring |
| Heat Resistance | Up to 600–800°C (Depending on Material) |
| Pressure Resistance | Resistant to High Differential Pressure, Stable for Long-term Operation |
Common sizes of Stainless Steel Cartridge
| Grade | Outer dia.(mm) | Length(mm) | Connection thread | Tail thread | Filtration area(m²) |
| C-60A | 60 | 1239 | M42*2 | M8 | 0.86-1.00 |
| C-60B | 60 | 1215 | M42*2 | M8 | 0.84-0.97 |
| C-60C | 60 | 900 | M36*3 | M8 | 0.63-0.68 |
| C-35A | 35 | 425 | 3/4’’ 16UNF or M20*1.5 | M5 or M6 | 0.17-0.20 |
| C-35B | 35 | 485 | 3/4’’ 16UNF or M20*1.5 | M5 or M6 | 0.20-0.23 |
| C-35C | 35 | 525 | 3/4’’ 16UNF or M20*1.5 | M5 or M6 | 0.22-0.25 |
Applications
- High temperature gas filtration
- Catalyst recovery
- Corrosive process medium purification
- Gas boiler smoke filtration
- Waste gas dust removal
- High temperature oil & gas separation
- High temperature oil filtration
- Hydraulic oil impurity removal
- Pipeline safety filtration
- Strong corrosive liquid & gas filtration
- Polymer melt precision filtration
- Hydrogen energy filtration
- Metallization
- Metallurgical high temperature gas purification
- High temperature
- High pressure
- Strong corrosion
- Flammable gas filtration
